Full RBAC Policy

The following will demonstrate building a policy using a simple Role Based Access Control in the build.security's system.

Roles and Permissions Mapping Creation

First, we'll define a very basic roles and permissions mapping. We'll do so using the internal data source.

1. Create a new internal data source (see here for more instructions)
2. Use the following json object:

{
    "roles": {
        "admin": {
            "permissions": [
                "overview",
            ],
            "sub_roles": ["developer"]
        },
        "developer": {
            "permissions": [
                "overview.view"
            ],
            "sub_roles": []
        }
    },
    "users": {
        "alice": {
            "id": 1,
            "role": "admin"
        },
        "bob": {
            "id": 2,
            "role": "developer"
        }
    }
}

Looking closely in the object, we'll identify:

• There are 2 roles: admin and developer.
• There are 2 users: alice and bob.
• Alice is an admin, bob is a developer.
• Every admin is also a developer (note the sub_roles field of the admin role)
• We're using dot notation permissions, with hierarchy. admin has the overview permissions (and everything that starts with overview while the developer role has only overview.view permission.

1. Save the internal data source with the name "roles2permissions"

Policy Creation

Now that we have a data source that represents the users, the roles and their permissions, we can move forward to the policy creation phase.

1. Create a new policy
2. Add a new custom rule with the following code snippet:

# Use the data in hand to create a graph of the roles and the attached permissions
roles_graph[entity_name] = descendants {
    data.datasources.roles2permissions.roles[entity_name]
    descendants := data.datasources.roles2permissions.roles[entity_name].sub_roles
}

permissions_map[entity_name] = permissions {
    data.datasources.roles2permissions.roles[entity_name]
    reachable := graph.reachable(roles_graph, {entity_name})
    permissions := {item | reachable[k]; item := data.datasources.roles2permissions.roles[k].permissions[_]}
}

# Use the name of the user from the request and returns its role as given by the data
role_of_user := role {
    role := data.datasources.roles2permissions.users[input.user].role
}

# Returns true of all the required permissions are satisfied by the user's granted permissions
rbac {
    granted_permissions := { i | i := permissions_map[role_of_user][_]}
    required_permissions := { i | i := input.required_permissions[_]}
    some i,j
    startswith(required_permissions[i], granted_permissions[j])
}

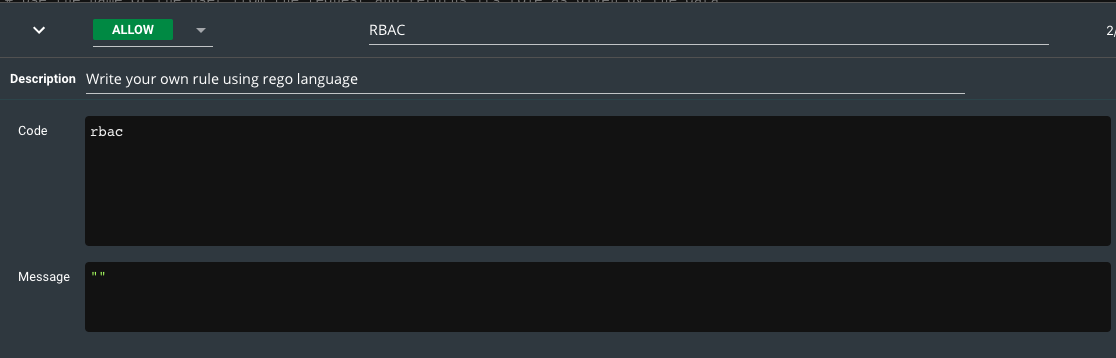

1. Create a new empty rule that only checks for rbac to evaluate to true. In the management UI the rule will look like this:

So the generated code of it will look like this:

# RBAC
active[decision] {
    rule_type := "allow"
    rbac
    decision := {
        "result": rule_type,
        "message": ""
    }
}

Policy is ready, next - test the policy.

Testing the Policy

One way to test the policy is to deploy a PDP and querying it using cURL or straight from your application.
Another option is to use build.security's policy evaluator.
For the following input, where alice is trying to do overview.edit, the request will get allowed:

{
  "user": "alice",
  "required_permissions": [
    "overview.edit"
    ]
}

But for this same request for bob (who is a developer) the request will get denied:

{
  "user": "bob",
  "required_permissions": [
    "overview.edit"
    ]
}
