Stretch AI Apps

Stretch AI comes with several apps that you can run to test the robot's capabilities. These apps are designed to be easy to use and demonstrate the robot's capabilities in various scenarios.

• Keyboard Teleop - Teleoperate the robot with the keyboard.
• Print Joint States - Print the joint states of the robot.
• View Images - View images from the robot's cameras.
• Show Point Cloud - Show a joint point cloud from the end effector and head cameras.
• Gripper - Open and close the gripper.
• Rerun - Start a rerun.io-based web server to visualize data from your robot.
• LLM Voice Chat - Chat with the robot using LLMs.

Advanced:

• Grasp an Object - Grasp an object with the robot.
• Automatic 3d Mapping - Automatically explore and map a room, saving the result as a PKL file.
• Read saved map - Read a saved map and visualize it.
• Pickup Objects - Have the robot pickup toys lying on the floor and put them in a box.

Finally:

• Dex Teleop data collection - Dexterously teleoperate the robot to collect demonstration data.
• Learning from Demonstration (LfD) - Train SOTA policies using HuggingFace LeRobot

There are also some apps for debugging.

List of Apps

Stretch AI is a collection of tools and applications for the Stretch robot. These tools are designed to be run on the robot itself, or on a remote computer connected to the robot. The tools are designed to be run from the command line, and are organized as Python modules. You can run them with python -m stretch.app.<app_name>.

Some, like print_joint_states, are simple tools that print out information about the robot. Others, like mapping, are more complex and involve the robot moving around and interacting with its environment.

All of these take the --robot_ip flag to specify the robot's IP address. You should only need to do this the first time you run an app for a particular IP address; the app will save the IP address in a configuration file at ~/.stretch/robot_ip.txt. For example:

export ROBOT_IP=192.168.1.15
python -m stretch.app.print_joint_states --robot_ip $ROBOT_IP

Debugging Tools

Keyboard Teleop

Use the WASD keys to move the robot around.

python -m stretch.app.keyboard_teleop --robot_ip $ROBOT_IP

# You may also run in a headless mode without the OpenCV gui
python -m stretch.app.keyboard_teleop --headless

Remember, you should only need to provide the IP address the first time you run any app from a particular endpoint (e.g., your laptop).

Print Joint States

To make sure the robot is connected or debug particular behaviors, you can print the joint states of the robot with the print_joint_states tool:

python -m stretch.app.print_joint_states --robot_ip $ROBOT_IP

You can also print out just one specific joint. For example, to just get arm extension in a loop, run:

python -m stretch.app.print_joint_states --joint arm

Visualization and Streaming Video

Visualize output from the caneras and other sensors on the robot. This will open multiple windows with wrist camera and both low and high resolution head camera feeds.

python -m stretch.app.view_images --robot_ip $ROBOT_IP

You can also visualize it with semantic segmentation (defaults to Detic:

python -m stretch.app.view_images --robot_ip $ROBOT_IP ----run_semantic_segmentation

You can visualize gripper Aruco markers as well; the aruco markers can be used to determine the finger locations in the image.

python -m stretch.app.view_images --robot_ip $ROBOT_IP --aruco

Show Point Cloud

Show a joint point cloud from the end effector and head cameras. This will open an Open3d window with the point cloud, aggregated between the two cameras and displayed in world frame. It will additionally show the map's origin with a small coordinate axis; the blue arrow points up (z), the red arrow points right (x), and the green arrow points forward (y).

python -m stretch.app.show_point_cloud

You can use the --reset flag to put the robot into its default manipulation posture on the origin (0, 0, 0). Note that this is a blind, unsafe motion! Use with care.

python -m stretch.app.show_point_cloud --reset

Use the Gripper

Open and close the gripper:

python -m stretch.app.gripper --robot_ip $ROBOT_IP --open
python -m stretch.app.gripper --robot_ip $ROBOT_IP --close

Alternately:

python -m stretch.app.open_gripper --robot_ip $ROBOT_IP
python -m stretch.app.close_gripper --robot_ip $ROBOT_IP

Rerun Web Server

We provide the tools to publish information from the robot to a Rerun web server. This is run automatically with our other apps, but if you want to just run the web server, you can do so with:

python -m stretch.app.rerun --robot_ip $ROBOT_IP

You should see something like this:

[2024-07-29T17:58:34Z INFO  re_ws_comms::server] Hosting a WebSocket server on ws://localhost:9877. You can connect to this with a native viewer (`rerun ws://localhost:9877`) or the web viewer (with `?url=ws://localhost:9877`).
[2024-07-29T17:58:34Z INFO  re_sdk::web_viewer] Hosting a web-viewer at http://localhost:9090?url=ws://localhost:9877

Voice Chat

Chat with the robot using LLMs.

python -m stretch.app.voice_chat

Dex Teleop for Data Collection

Dex teleop is a low-cost system for providing user demonstrations of dexterous skills right on your Stretch. This app requires the use of the dex teleop kit. You can see an example of the system in action in the Dex Teleop video on YouTube.

You need to install mediapipe for hand tracking:

python -m pip install mediapipe

python -m stretch.app.dex_teleop.ros2_leader -i $ROBOT_IP --teleop-mode base_x --save-images --record-success --task-name default_task

Read the data collection documentation for more details.

After this, read the learning from demonstration instructions to train a policy.

Grasp an Object

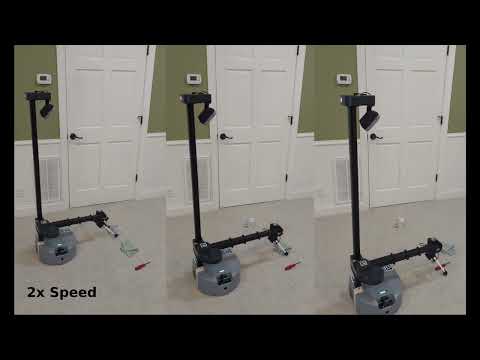

This app has the robot grasp an object positioned in front of its arm, on the floor, about a meter away. You can see the grasp practice video on YouTube to see how it works.

python -m stretch.app.grasp_object --robot_ip $ROBOT_IP --target_object "object description"

Automatic 3d Mapping

python -m stretch.app.mapping

You can show visualizations with:

python -m stretch.app.mapping --show-intermediate-maps --show-final-map

The flag --show-intermediate-maps shows the 3d map after each large motion (waypoint reached), and --show-final-map shows the final map after exploration is done.

It will record a PCD/PKL file which can be interpreted with the read_map script; see below.

Another useful flag when testing is the --reset flag, which will reset the robot to the starting position of (0, 0, 0). This is done blindly before any execution or mapping, so be careful!

Voxel Map Visualization

You can test the voxel code on a captured pickle file. We recommend trying with the included hq_small.pkl or hq_large files, which contain a short and a long captured trajectory from Hello Robot.

python -m stretch.app.read_map -i hq_small.pkl

Optional open3d visualization of the scene:

python -m stretch.app.read_map -i hq_small.pkl  --show-svm

You can visualize instances in the voxel map with the --show-instances flag:

python -m stretch.app.read_map -i hq_small.pkl  --show-instances

You can also re-run perception with the --run-segmentation flag and provide a new export file with the --export flag:

 python -m stretch.app.read_map -i hq_small.pkl --export hq_small_v2.pkl --run-segmentation

You can test motion planning, frontier exploration, etc., as well. Use the --start flag to set the robot's starting position:

# Test motion planning
python -m stretch.app.read_map -i hq_small.pkl --test-planning --start 4.5,1.3,2.1
# Test planning to frontiers with current parameters file
python -m stretch.app.read_map -i hq_small.pkl --test-plan-to-frontier --start 4.0,1.4,0.0
# Test sampling movement to objects
python -m stretch.app.read_map -i hq_small.pkl --test-sampling --start 4.5,1.4,0.0
# Test removing an object from the map
python -m stretch.app.read_map -i hq_small.pkl --test-remove --show-instances --query "cardboard box"

Pickup Objects

This will have the robot move around the room, explore, and pickup toys placed on the floor in order to put them in a box.

python -m stretch.app.pickup --target_object toy

You can add the --reset flag to make it go back to the start position. The default object is "toy", but you can specify other objects as well, like "bottle", "cup", or "shoe".

python -m stretch.app.pickup --reset

Experimental

VLM Planning

This is an experimental app that uses the voxel map to plan a path to a goal. It is not yet fully functional.

python -m stretch.app.vlm_planning

Open-Vocabulary Mobile Manipulation

This is an experimental app that uses a language model to generate commands for the robot given a natural language input. It is not yet fully functional.

python -m stretch.app.ovmm

Options include:

• --robot_ip - The IP address of the robot.
• --task - The task to perform. Can be a natural language command for the robot.
• --llm - The language model to use. Can be qwen25-3B-Instruct (default), openai, or gemma2b.
